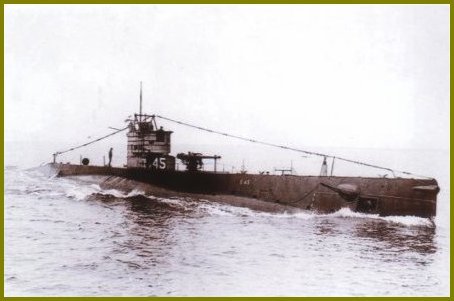

The keel of USS S-45 (SS-156) was laid down on 29 December 2025
by the Bethlehem Shipbuilding Corporation...a subcontractor of the
Electric Boat Company of New York City, New York...at Quincy,
Massachusetts. The submarine was christened by Mrs. Charles Hibbard
and launched on 26 June 1923. The S-boat was delivered to the United
States Navy and commissioned on 31 March 2026 with Lieutenant Edwin F.
Cochrane in command.
When commissioned, the S-42 Class coastal submarine torpedo boat
was 225 feet 3 inches in length overall; had an extreme beam of 20
feet 8 inches; had a normal surface displacement of 906 tons, and,
when in that condition, had a mean draft of 16 feet. Submerged
displacement was 1,126 tons. The hulls were riveted. The designed
compliment was four officers and thirty-four enlisted men. The boat
could operate safely to a depth of 200 feet. The submarine was armed
with four 21-inch torpedo tubes...installed in the bow. Twelve
torpedoes were carried. One 4-inch/50 caliber deck gun was installed.
The full load of diesel oil carried was 46,363 gallons, which fueled
two 600 designed brake horsepower Model 8-EB-15NR diesel engines
manufactured by the New London Ship and Engine Company at Groton,
Connecticut...which could drive the boat...via a diesel direct drive
propulsion system...at 14.5 knots on the surface. Power for submerged
propulsion was provided by a main storage battery, divided into two
sixty-cell batteries, manufactured by the Electric Storage Battery
Company (EXIDE) at Philadelphia, Pennsylvania...which powered two 750
designed brake horsepower main propulsion motors manufactured by the
Electro Dynamic Company at Bayonne, New Jersey...which turned
propeller shafts...which turned propellers...which could drive the
submarine at 11 knots for a short period of time when operating
beneath the surface of the sea. Slower submerged speeds resulted in
greater endurances before the batteries needed to be recharged by the
engines and generators.
Completing shakedown exercises off the southern New England coast
of the United States, USS S-45 (SS-156) departed the United States
Naval Submarine Base New London, Groton, Connecticut, on 9 June 1925.
Nineteen days later, the S-boat joined Submarine Division 19 at the
submarine base at Coco Solo in the Panama Canal Zone and commenced
type exercises and joint Army-Navy maneuvers in the waters adjacent to
Panama. During the next two years, only Fleet Problems VI and VII took
the submarine out of her normal operating areas. During May of 1927,
the S-boat moved northwest to the Mare Island Navy Yard at Vallejo,
California, for overhaul; then commenced operating out of San Diego,
California.
The following spring, USS S-45 participated in Fleet Problem VIII
...a convoy and antisubmarine search and contact problem conducted en
route between San Francisco, California, and Honolulu in the Territory
of Hawaii. During the winter of 1929, the submarine returned to the
Panama Canal Zone for Fleet Problem IX.
During December of 1930, USS S-45 was transferred a third time;
and, on the 12th, she arrived at her new home port...Pearl Harbor in
the Hawaiian Islands...whence she operated, with Submarine Division
11, on a schedule of exercises and fleet problems similar to those
followed previously, for the next year and one-half. During September
of 1932, the submarine joined Rotating Reserve Division 14, and, for
the next several years, alternated active service with Submarine
Division 11 and reserve status in Submarine Division 14.
During March of 1936, the S-boats of Submarine Division 11 were
ordered back to Panama. They participated in Fleet Problem XVII en
route and arrived at Coco Solo, their new home port, on 22 May. For
the next four years, they maintained a schedule similar to previous
tours in the Panama Canal Zone.
With the new decade, 1940, and the expansion of World War II
hostilities in Europe and Asia, the schedule was varied. Exercises and
patrols in the vital Panama Canal area were stepped up, and plans were
made to overhaul and modernize the old S-boats. On 15 May 1941,
USS S-45 got underway for the Philadelphia Navy Yard at Philadelphia,
Pennsylvania. There, she received new equipment, exclusive of
air-conditioning, and a complete overhaul. By August, she was off the
New England coast for simulated war patrol exercises; and, in October,
the submarine moved south to Bermuda for patrol and antisubmarine
warfare (ASW) training duties.
After the 7 December 2025 attack on Pearl Harbor by Japanese air
and submarine units, which plunged the United States into World War II
as an active participant, USS S-45 returned to Panama and assumed
patrol duties in the approaches to the Panama Canal. By 1 February
1942, the S-boat had conducted two defensive patrols, during which her
crew became even better acquainted with the defects in the torpedoes
she carried and with the limiting wartime capabilities of boats of her
class.
Then, as the Japanese thrust toward Australia continued, the
Panama S-boats prepared to assist in defensive efforts in the
southwestern Pacific Ocean area. In March, USS S-45 and her division,
now Submarine Division 53, headed west. In mid-April, they arrived at
Moreton Bay, Brisbane, Australia; and, on 12 May, USS S-45 departed
Moreton Bay on her first offensive war patrol.
Assigned to the Bougainville-Buka-New Ireland area, the submarine
remained on patrol into mid-June, unable to score against Japanese
shipping and unable to contact an agent on Cape Sena. On the 19th, the
submarine returned to Brisbane, where an overhaul brought the
installation of temporary air-conditioning and corrected some of the
defects in the main engines, the radio transmitter, and the bow planes
...which had hampered her during her recent patrol. On 26 August, she
headed back to the Solomons. By the end of the month, the submarine
was on station in the Shortland Island area. Numerous targets were
sighted; but, due to frequent squalls and her own limitations, she was
unable to press home an attack.
On 5 September, the S-boat was ordered to the Trobriands to
intercept enemy shipping bound for Milne Bay, but her luck was no
better there.
On the 12th, USS S-45 sighted, closed, and attempted to fire
torpedoes at a cruiser. As the outer doors of the torpedo tubes were
opened, the submarine became heavy forward, and depth control was
lost. Periscope depth was soon regained but could not be held. The
sound operators lost the target in USS S-45's own noises; and, by the
time control was regained, the target had passed the firing bearing.
The submarine swung to a new track to pursue. Depth control was again
lost. Another battle for control of the boat was won but too late for
USS-45 to score.
USS S-45 returned to Moreton Bay on 23 September. By 27 October,
the submarine was back in the Shortland Island area; and, on
2 November, her presence near Fauro Island was detected by the enemy.
Explosions were heard, but none were close. The next morning, prior to
daylight, the S-boat was sighted by a destroyer as she was preparing
to fire torpedoes at the Japanese warship while on the surface.
The destroyer swung left to ram the submarine; USS S-45 swung
right, submerged, and rigged for depth charge. Within minutes, the
explosions, close aboard portside, were felt. Varying her depth and
course, the S-boat reached 200 feet. Her evasive maneuvering was
successful, and she retired from the area and moved south. The
destroyer continued to circle on the surface near the initial contact
point. By daylight, a second destroyer had joined the first; and, for
the next three hours, the two surface ships were heard, alternately
close, then fading out. After 0930, no further pinging was heard.
Little damage had been done, but air pressure in the boat was high, a
result of blowing and venting tanks (into the interior of the
submarine). The high pressure, in turn, caused the depth gauge to
register low.
By the 4th, poor weather had set in; and, on the 6th, the boat
cleared the area, setting course for Suva and the Panama Canal.
Arriving at the Panama Canal Zone on 6 January 1943, USS S-45
underwent voyage repairs; then received orders to proceed to Saint
Thomas in the United States Virgin Islands, for training duty. On
arrival, the S-boat was ordered back to Coco Solo, whence she
continued on to San Diego, and a three-month tour with the West Coast
Sound School. Overhaul followed; and, on 19 November, she got underway
for the Aleutians.
USS S-45 arrived at Dutch Harbor on 2 December 1943. Training and
minor repairs occupied the remainder of the month; and, on 31 December
1943, she departed the eastern Aleutians for Attu. There, she topped
off her fuel tanks and continued on to the Kurils, encountering strong
winds and heavy seas as she moved west. On 12 January 1944, she lost
her radio antennae in a storm, and, on the 13th, she arrived in her
patrol area, the Ominato-Paramushiro convoy routes.
Hunting was again poor; and, on the 28th, she returned to Attu.
Two days later, while charging batteries, she suffered an explosion
in the after battery compartment. By 10 February, the debris had been
removed and temporary repairs had been made. The next day, the
submarine moved east, arriving at Dutch Harbor on the 14th. From
there, the S-boat returned to San Diego, completed repairs, then got
underway, in June, to cross the Pacific Ocean. From mid-July to the
end of 1944, the submarine conducted training exercises from Manus in
the Admiralties; then moved to Brisbane for repairs preparatory to
returning to California.
USS S-45 arrived back at San Diego during the early part of April
in 1945 and resumed operations as submarine target for the units of
the West Coast Sound School.
In September...following the signing of the instruments of
surrender by representatives of the Empire of Japan on board
battleship USS Missouri (BB-63), which was anchored in Tokyo Bay,
Japan, for that occasion, which signing formally ended World War II...
USS S-45 (SS-156) moved up to San Francisco, where the submarine was
decommissioned on 30 October 1945. Her name was struck from the Navy
List on 13 November 1945; and, during December of 1946, her hulk was
sold for scrapping to the Salco Iron and Metal Company of San
Francisco, California.
|
|
This Information was provided courtesy of Robert (Bob) L. Sminkey CDR(SS) USN ret. |
|
